LI-BV-01-3SE Stainless Steel 3 Pcs Ball Valve Screwed-End

Features

  • Superior Quality Stainless-Steel Investment Casting
  • Confirms to Class-150
  • Design Standard BS EN ISO 17292 (BS 5351).
  • Screwed Female Ends to BSPT / NPT.
  • Three Piece Design.
  • Superb in Quality and Performance.
  • Available in SS304(CF8) & SS316(CF8M) Grades.

Test Pressure (Hydrostatic) :
Shell : 31 kg/cm²g (440 Psi)
Maximum Working Pressure: 21 kg/cm²g (300 psi)
Seat (Pneumatic) : 7kg/cm²g (100 psi)
Maximum Working Temperature: 220°C

Suitability

Water, Air, Gas, Oil, Steam

Download PDF Start WhatsApp Chat Send Inquiry

Materials of Construction

Part Name Specifications / Material Qty
Body SS:304 1
Connector SS:304 2
Ball SS:304 1
Seat Ring PTFE 2
Stem SS:304 1
Ring Washer PTFE 2
Gland Packing PTFE 1
Thrust Bearing PTFE 1
Stud / Nut SS:304 4 Set
Spring Washer SS:304 8
Gland Nut SS:304 1
Stem Nut SS:304 1
Lever SS:304 1
Stem Washer SS:304 1
LI-BV-01-3SE Stainless Steel 3 Pcs Ball Valve Screwed-End

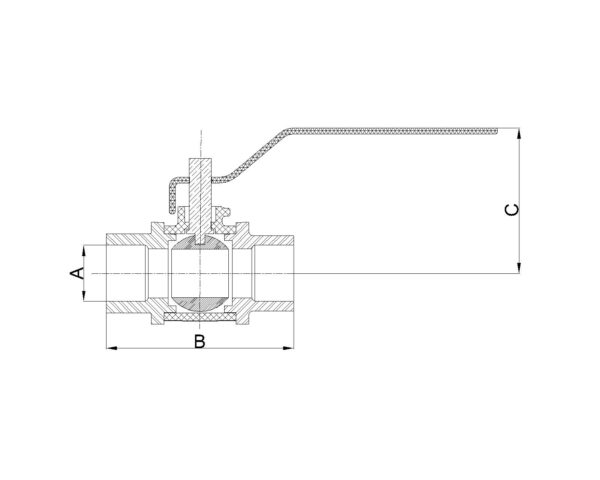

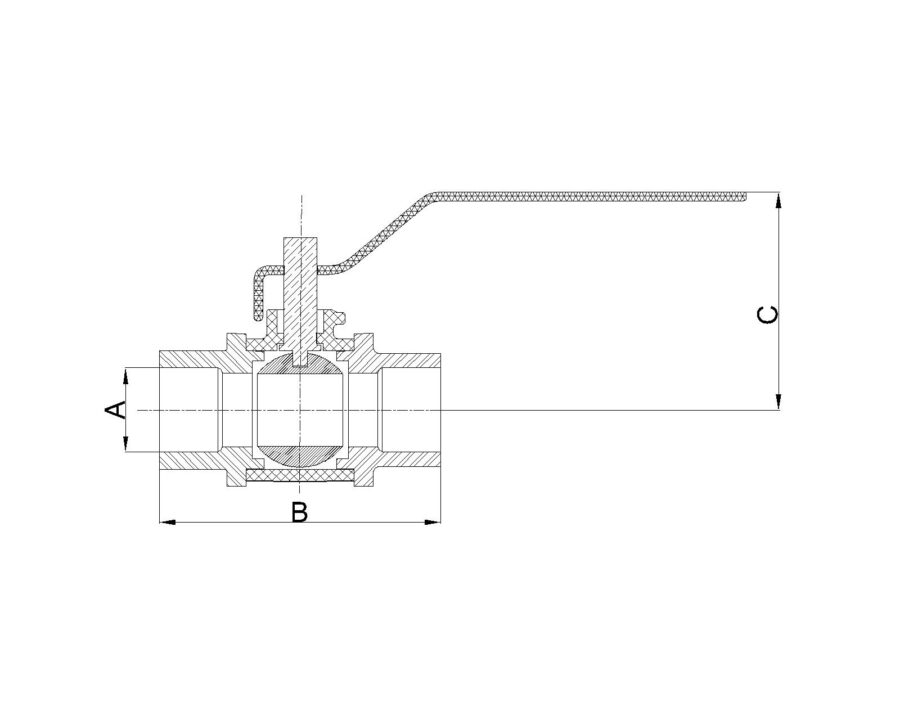

Dimensions

Size (mm) A B C
15 1/2″ BSP/NPT 69.00 56.00
20 3/4″ BSP/NPT 73.00 64.00
25 1″ BSP/NPT 89.00 75.00
32 1.1/4″ BSP/NPT 105.00 82.00
40 1.1/2″ BSP/NPT 115.00 88.00
50 2″ BSP/NPT 127.00 93.00
