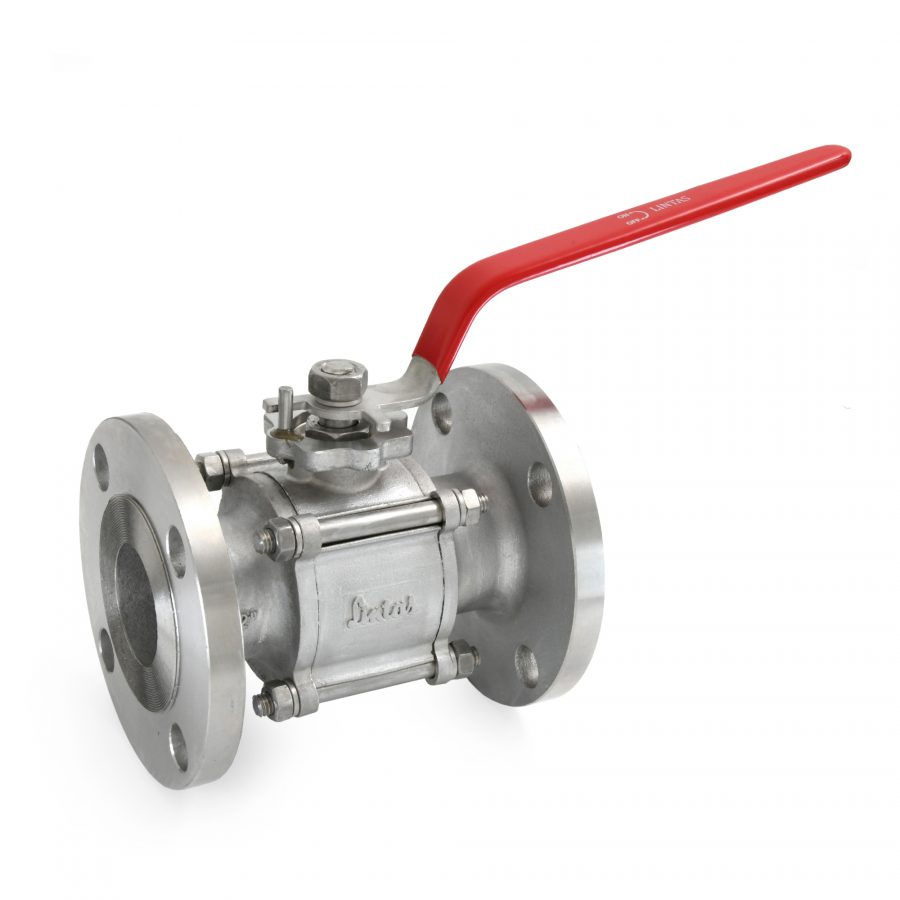

LI-BV-01-3FE Stainless Steel 3 Pcs Ball Valve Flanged-End CLASS 150

Features

  • Superior Quality Stainless Steel Investment Casting.
  • Design Standard BS EN ISO 17292 (BS 5351).
  • Flanged Ends to ASME B B16.5 Class-150.
  • Three Piece Design.
  • Superb in Quality and Performance.
  • Available in SS304(CF8) & SS316(CF8M)

Test Pressure (Hydrostatic) :
Shell : 31kg/cm²g (440 psig)
Maximum Working Pressure: 10.55 kg/cm²g (150 psig)
Seat (Pneumatic) : 7 kg/cm²g (100 psig)
Maximum Working Temperature: 200°C

Suitability

Water, Air, Gas, Oil, Steam

Download PDF Start WhatsApp Chat Send Inquiry

Materials of Construction

Part Name Specifications / Material Qty
Body CF8 /  CF8M 1
Connector CF8 /  CF8M 2
Ball CF8 /  CF8M 1
Seat Ring PTFE 2
Stem CF8 /  CF8M 1
Ring Washer PTFE 2
Gland Packing PTFE 1
Thrust Bearing PTFE 1
Stud / Nut CF8 4 Set
Spring Washer CF8 /  CF8M 8
Lock Pin CF8 /  CF8M 1
Gland Nut SS:202 1
Stem Nut CF8 /  CF8M 1
Lever SS:202 1
Stem Washer CF8 /  CF8M 1
LI-BV-01-3FE Stainless Steel 3 Pcs Ball Valve Flanged-End CLASS 150

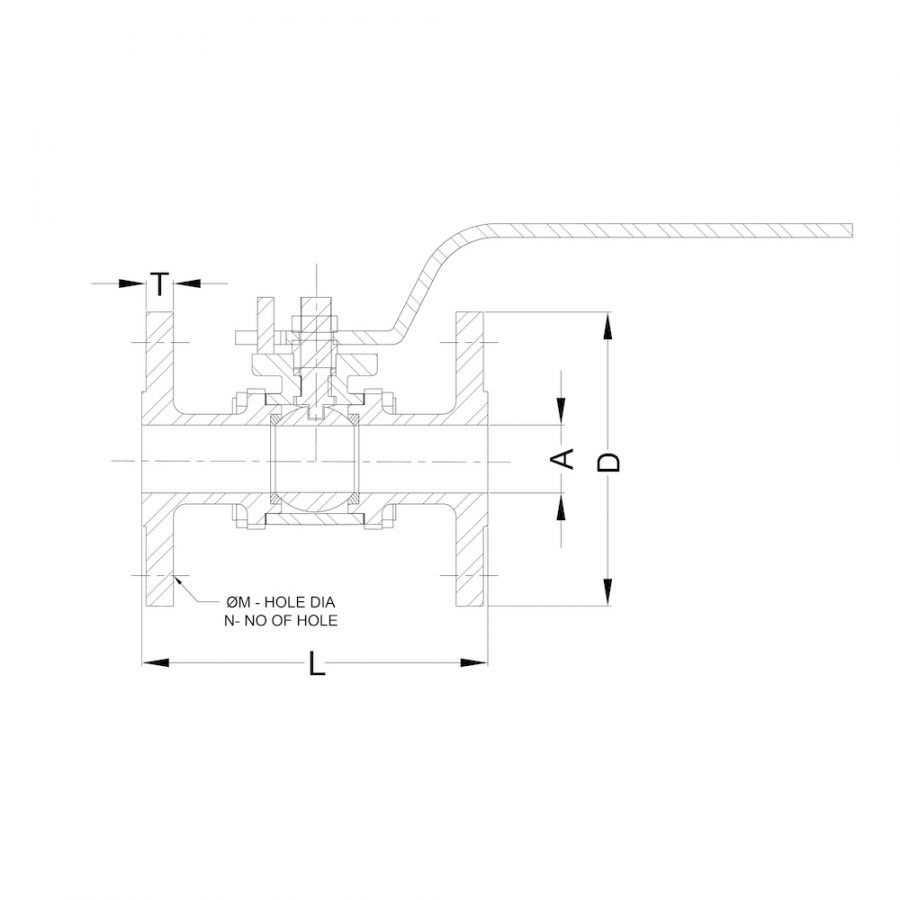

Dimensions

Size (DN) A D N ∅M PCD L (±2 mm) T (±1 mm)
15 14 89 4 16 60.5 108 9.0
20 19 100 4 16 70.0 117 9.5
25 25 108 4 16 79.4 127 10.0
32 32 117 4 16 88.9 140 11.0
40 40 127 4 16 98.4 165 13.0
50 50 152 4 19 120.7 178 15.0
65 63.5 178 4 19 139.7 190 16.0
80 76 190 4 19 152.0 203 17.0
100 100 229 4 19 191.0 229 18.0
