AQ-BV-01-SE AICQ Stainless-Steel Ball Valve Economical Design

Features

AICQ Ball Valve Two Piece Design.
Superior Quality Stainless steel Investment casting, full bore blow-off proof stem with Stainless Steel Ball, Teflon Seat & Seal, Handle lever operated.
Availaible in SS304(CF8) & SS316(CF8M) Grades
Design Standard: MSS SP – 110
Pressure/Class Rating: PN40
Testing Standard -API – 598/BS-6755 Part – 1

Suitability

Water, Air, Gas, Oil

Download PDF Start WhatsApp Chat Send Inquiry

Materials of Construction

Part Name	Specifications / Material	Qty
Body	SS:304 / SS:316	1
Connector	SS:304 / SS:316	1
Ball	SS:304 / SS:316	1
Stem	SS:304	1
Gland Nut	SS:304	1
Handle	SS:202	1
Seat / Seal	Teflon (PTFE)	5

AQ-BV-01-SE AICQ Stainless-Steel Ball Valve Economical Design

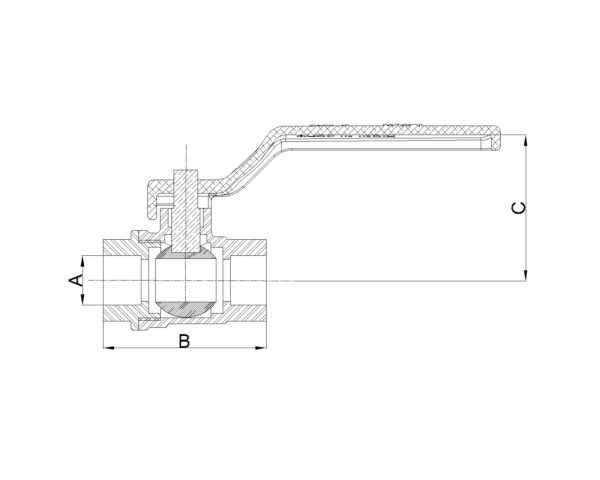

Dimensions

Size (mm)	A	B	C
15	1/2″ BSP/NPT	55.00	47.00
20	3/4″ BSP/NPT	60.00	52.00
25	1″ BSP/NPT	71.00	69.00
32	1.1/4″ BSP/NPT	81.00	74.00
40	1.1/2″ BSP/NPT	88.00	81.00
50	2″ BSP/NPT	109.00	90.00
65	2-1/2″ BSP/NPT	126.00	124.00
80	3″ BSP/NPT	150.00	141.00
100	4″ BSP/NPT	167.00	153.00
