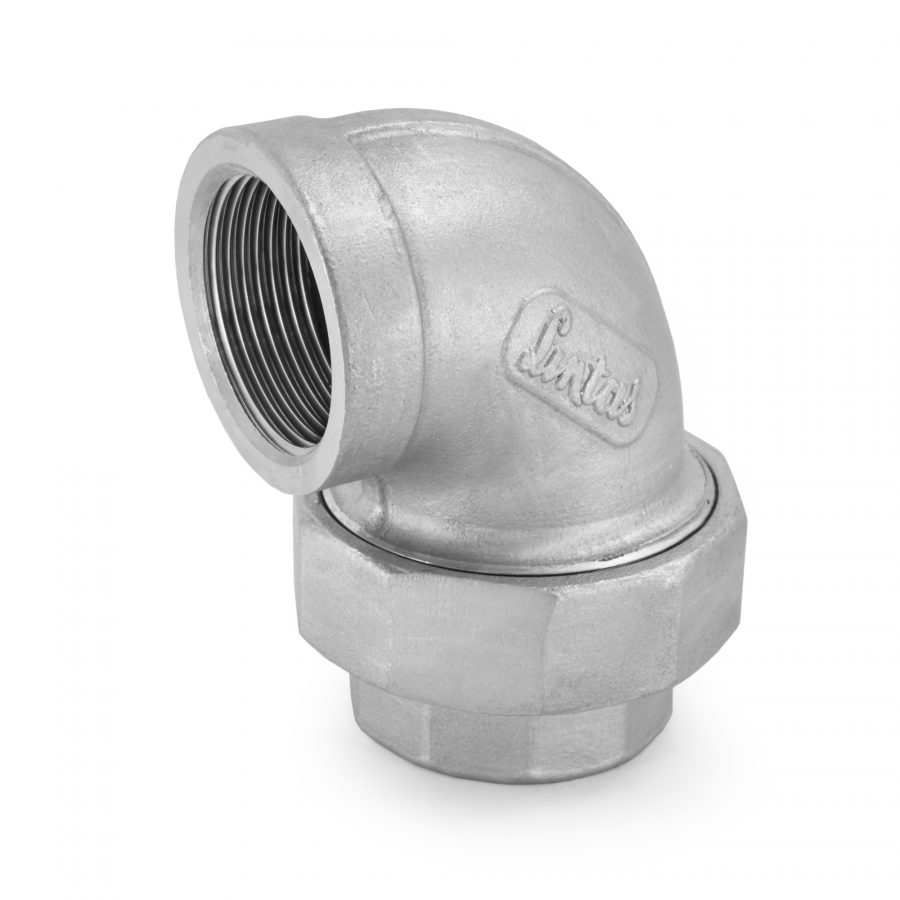

LI-EUN-01 Elbow Union F/F

Features

Superior Quality Investment-casted Stainless Steel.
Available in S.S 304(CF8) & S.S 316(CF8M) Grades.
Precise machining
Available in BSP / BSPT / NPT Threading as per requirement.
Pressure Rating PN25,Test Pressure(Hyd.):-30Kg./cm2 (427 psig)
Working Pressure 25 Kg./cm2 (356 psig)

Suitability

Water, Air, Gas, Oil, Steam

Download PDF Start WhatsApp Chat Send Inquiry

LI-EUN-01 Elbow Union F/F

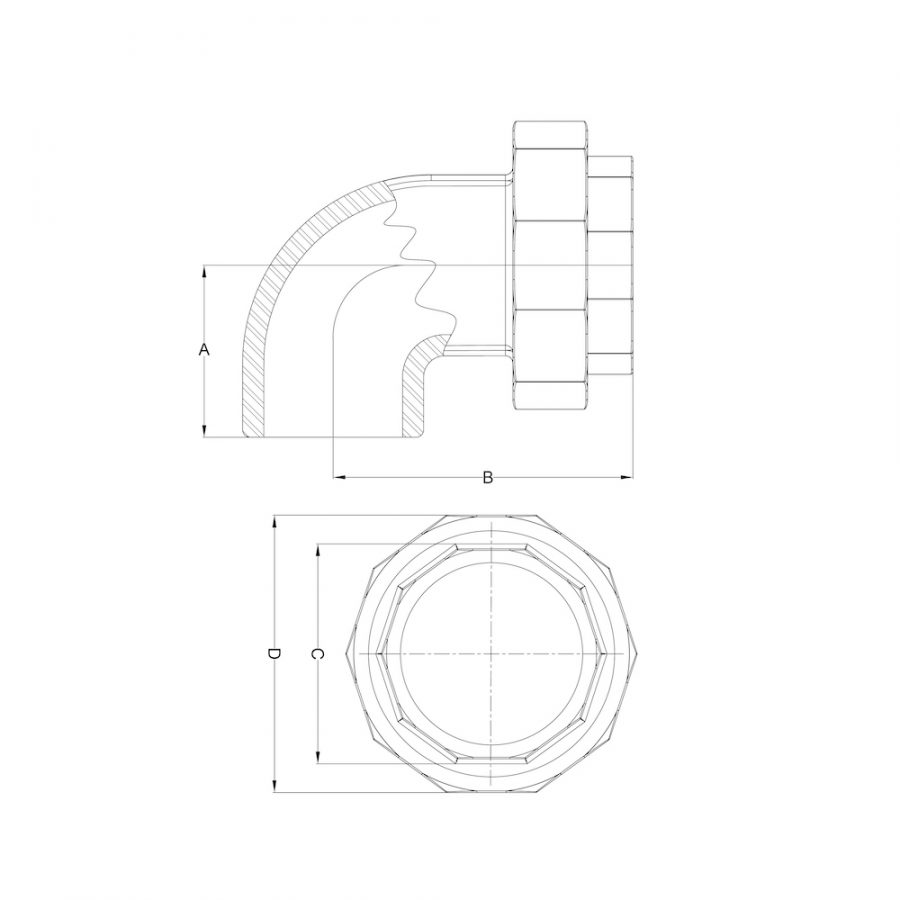

Dimensions

Size	A (mm)	A (Inch)	B (mm)	B (Inch)	C (mm)	C (Inch)	D (mm)	D (Inch)
1/4″	–	–	–	–	–	–	–	–
3/8″	22.10	0.87	50.90	2.00	22.80	0.89	36.30	1.44
1/2″	27.70	1.09	58.70	2.31	27.30	1.07	41.00	1.61
3/4″	31.70	1.25	62.70	2.46	32.30	1.27	49.50	1.95
1″	36.40	1.43	70.30	2.77	40.60	1.61	58.00	2.28
1.1/4″	43.80	1.72	77.00	3.03	49.30	1.94	68.30	2.69

Other Products in Lintas (Heavy Duty)

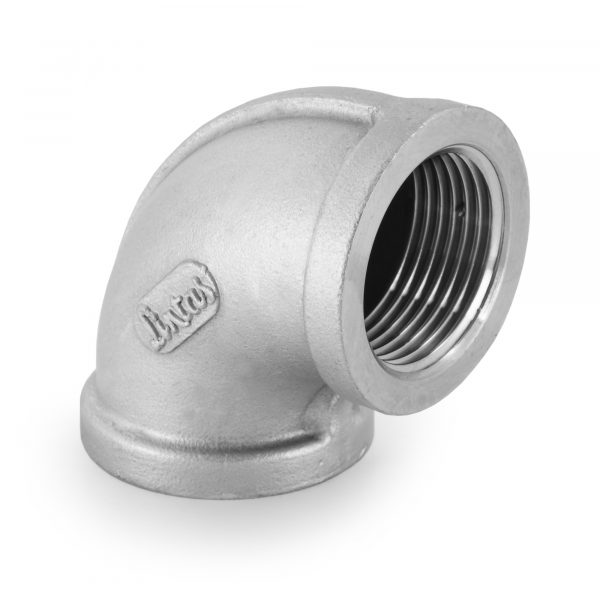

LI-EW-01 - 90° Elbow

90° Elbow

LI-EW-01

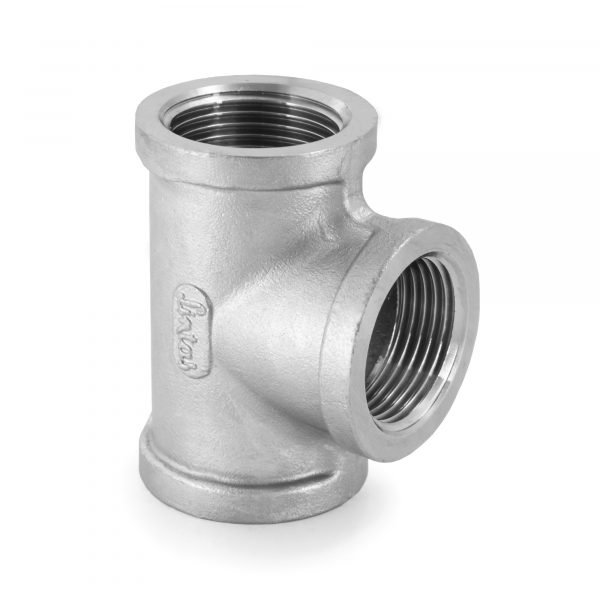

LI-T-01 - Tee

Tee

LI-T-01

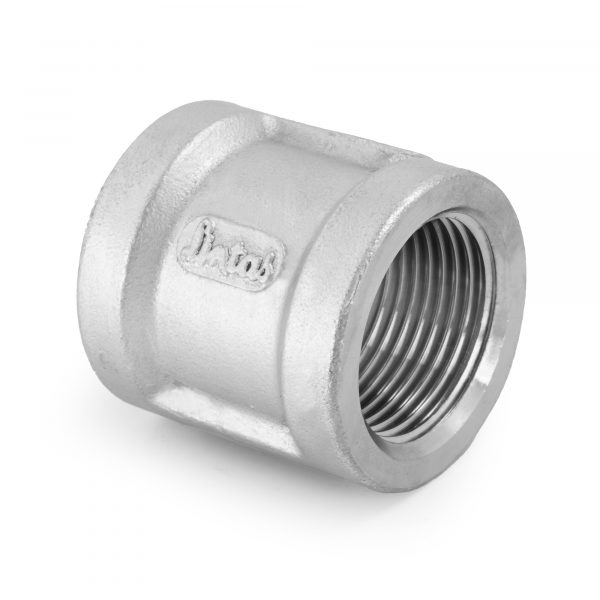

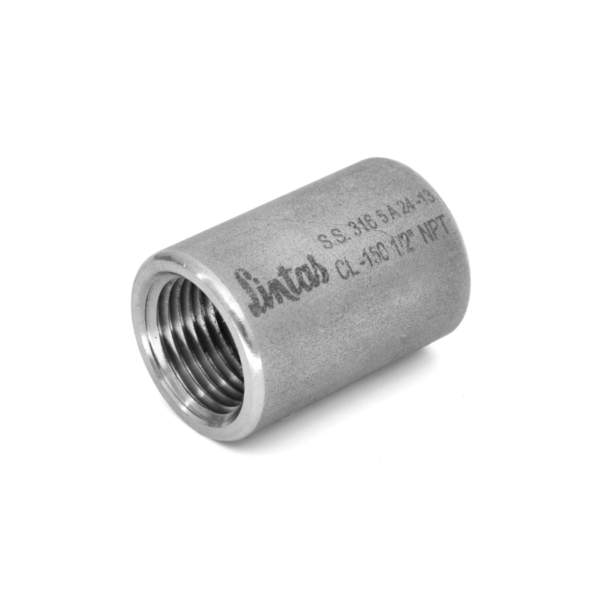

LI-SKT-01 - Socket

Socket

LI-SKT-01

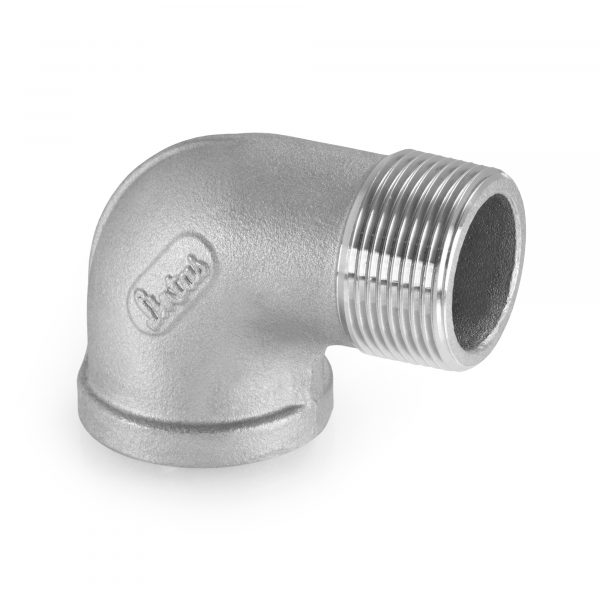

LI-MFE-01 - Street Elbow

Street Elbow

LI-MFE-01

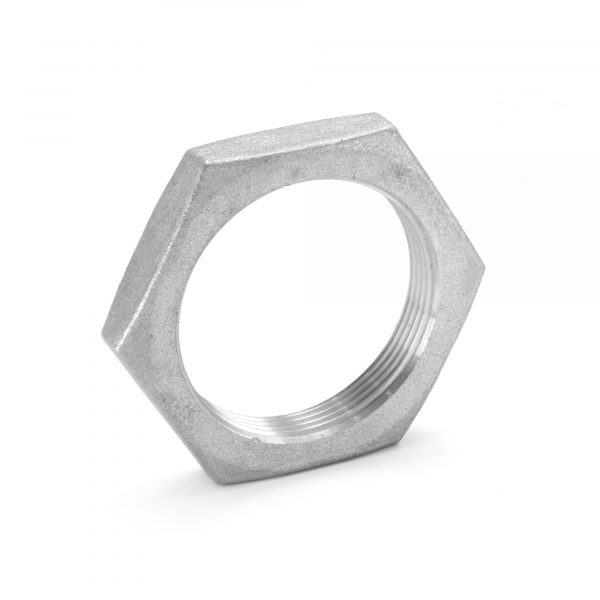

- Hex Nut

Hex Nut

LI-HNIP-01 - Hose Nipple

Hose Nipple

LI-HNIP-01

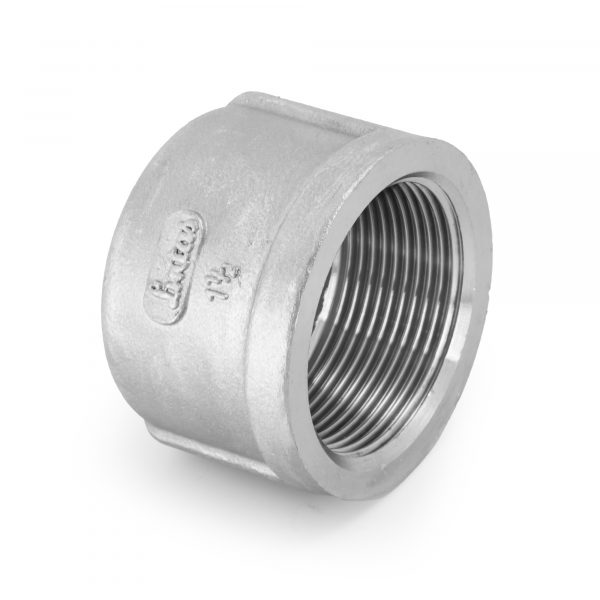

LI-RCP-01 - Round Cap

Round Cap

LI-RCP-01

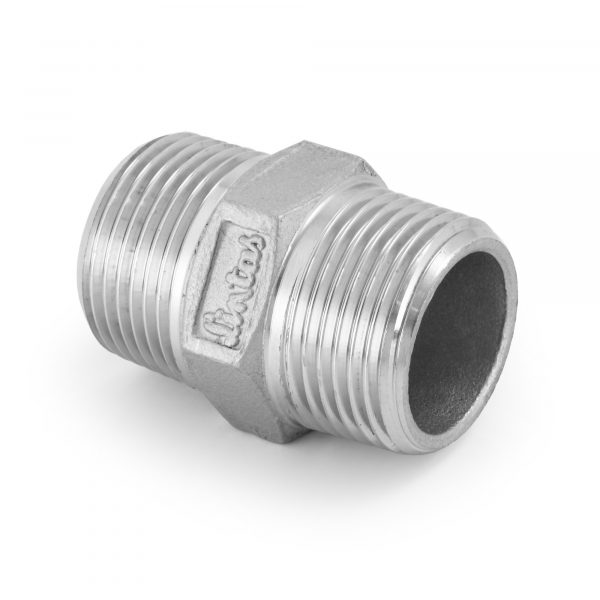

LI-HEX-01 - Hex. Nipple

Hex. Nipple

LI-HEX-01

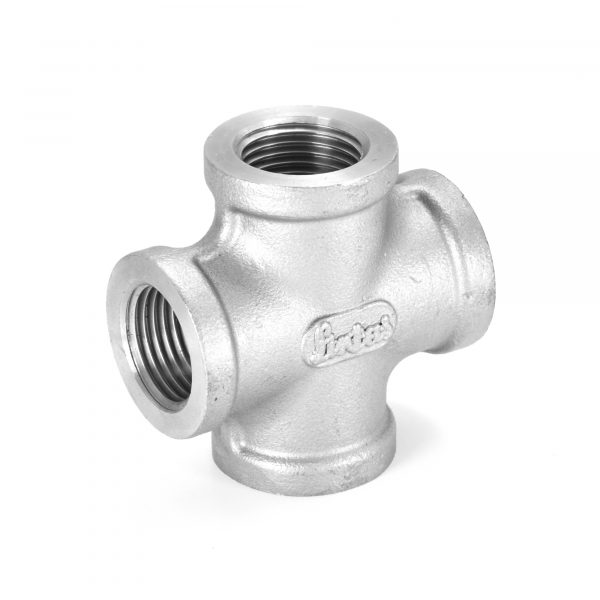

LI-CRS-01 - Cross

Cross

LI-CRS-01

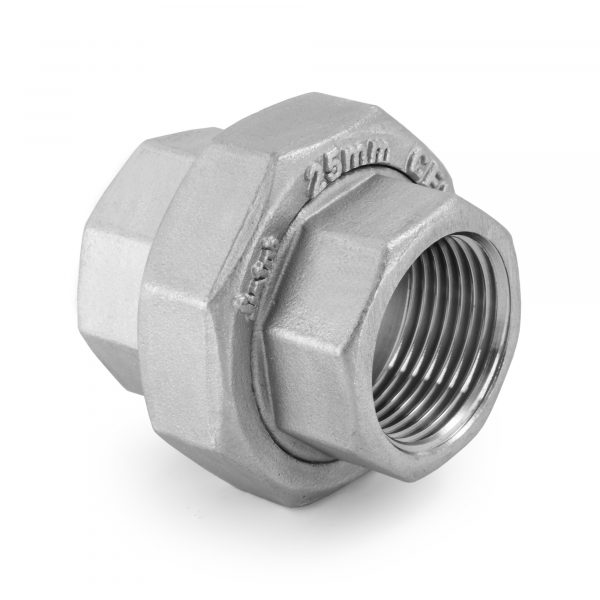

LI-UN-01 - Union

Union

LI-UN-01

LI-EUN-01 - Elbow Union F/F

Elbow Union F/F

LI-EUN-01

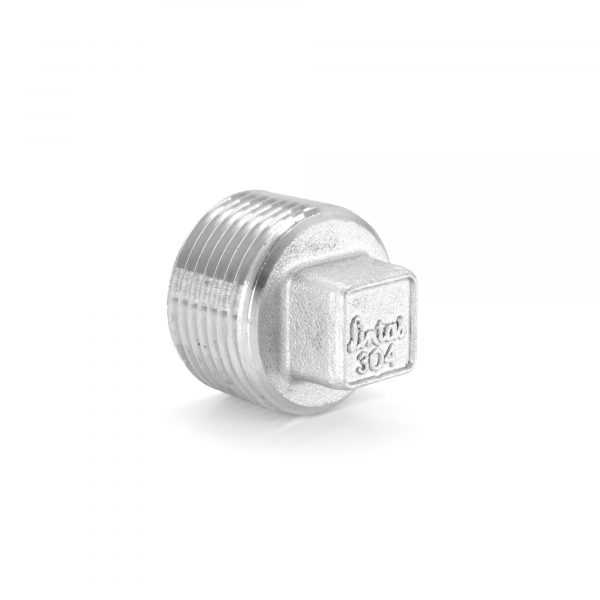

LI-DPG-01 - Dummy/Square Plug

Dummy/Square Plug

LI-DPG-01

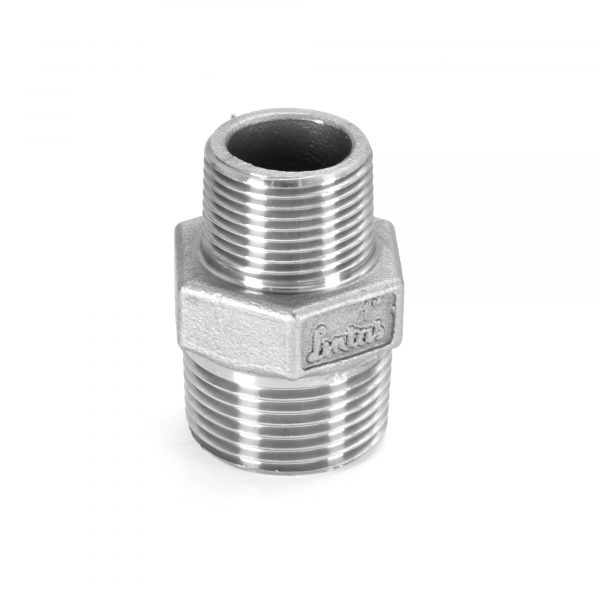

LI-RHEX-01 - Reducing Hex Nipple

Reducing Hex Nipple

LI-RHEX-01

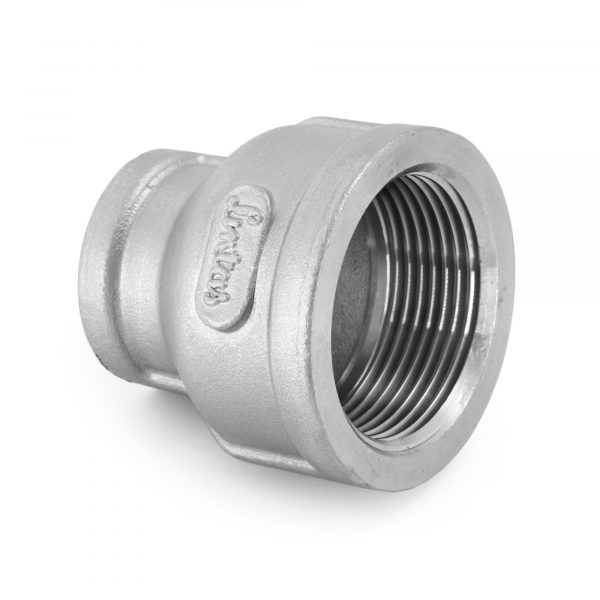

LI-RSKT-01 - Reducing Socket
