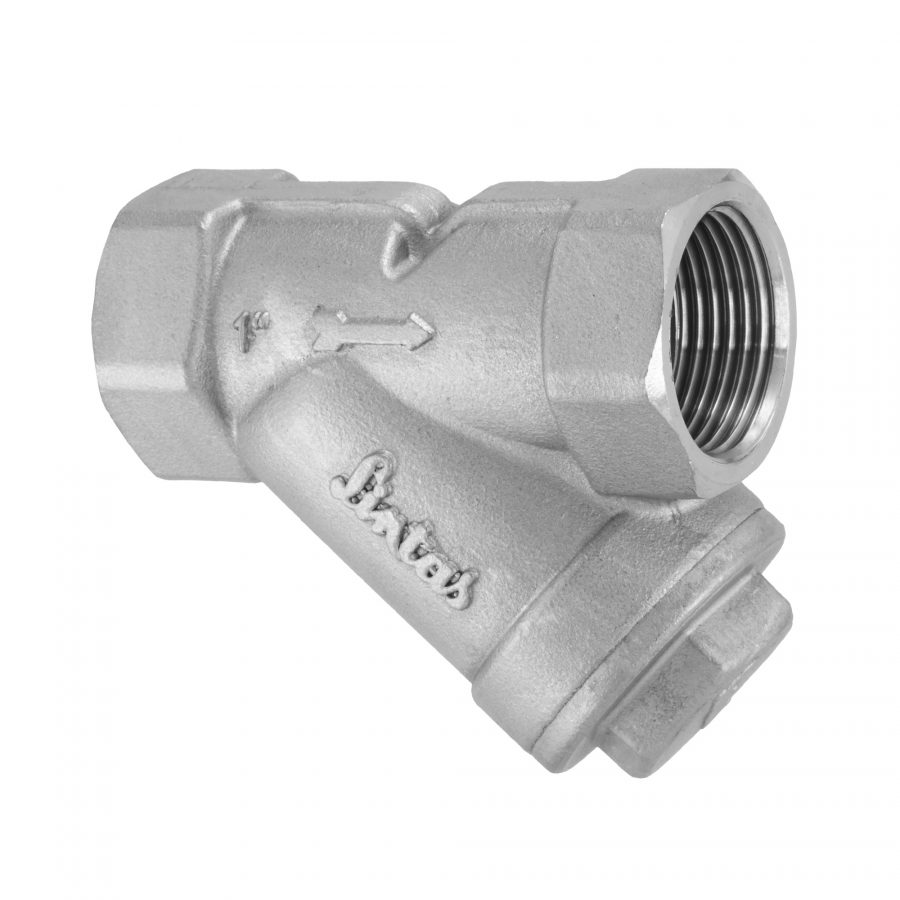

LI-YSTR-01 Lintas Stainless Steel Y-Type Strainer

Features

  • Superior Quality Stainless-Steel Investment Casting
  • Full Metal In-House Construction for a long and trouble-free life
  • Stainless Steel (S.S 304) perforated sheet screen is guided in body and bonnet.
  • Double-Mesh Filter is available as Extras.
  • Fine finish and smooth contours to minimize pressure drop inside the strainer.
  • A large screening area makes the strainer highly efficient in performance.

Testing pressure: 21.1 Kg/cm
Maximum Permissible Temperature: 225C

Suitability

Water, Air, Gas, Oil, Steam

Download PDF Start WhatsApp Chat Send Inquiry

Materials of Construction

Part Name Specifications / Material Qty
Body SS:304 1
Plug SS:304 1
Screen SS:304 1
Ring PTFE 1
LI-YSTR-01 Lintas Stainless Steel Y-Type Strainer

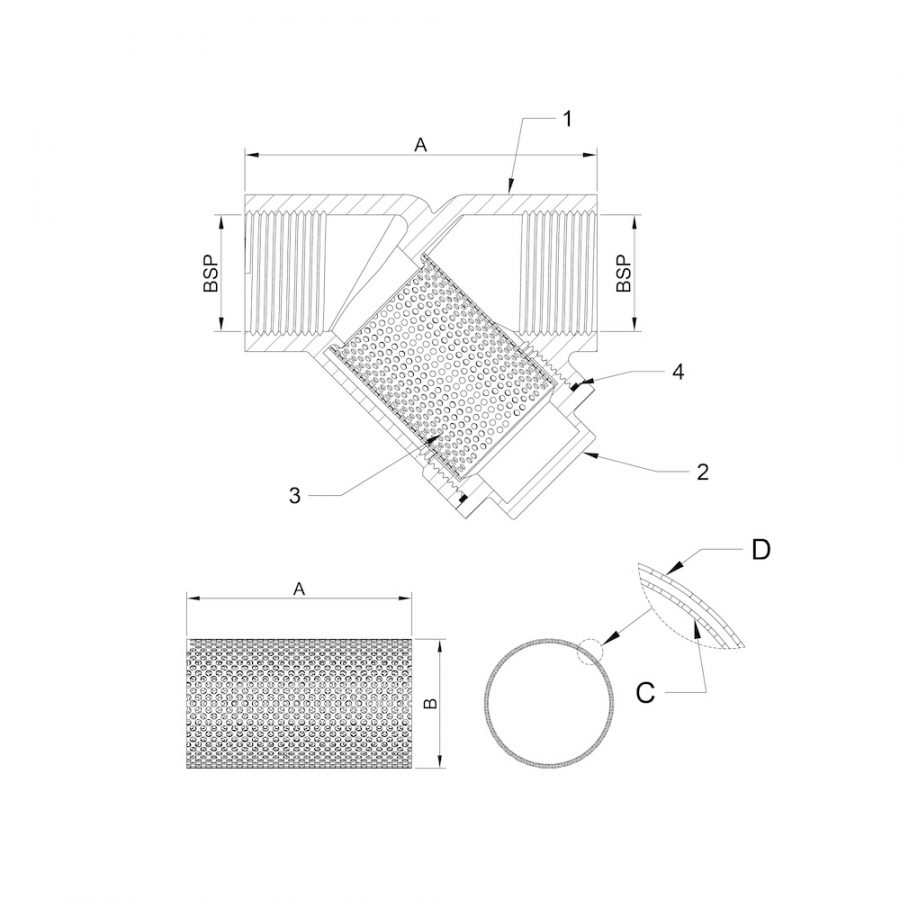

Dimensions

Size A B Outer Screen (D) Hole Size Inner Screen (C) Hole Size
15 34.5 18 1.2 60 Mesh
20 43.5 23 1.2 61 Mesh
25 46.5 32 1.2 62 Mesh
32 59 37 1.5 63 Mesh
40 69 45 1.5 64 Mesh
50 81 55 1.5 65 Mesh
Size (DN) mm (A) End to End ±1.00 mm Size (NPS)
15 64 1/2″
20 80 3/4″
25 85 1″
32 104 1.1/4″
40 117 1.1/2″
50 138 2″
