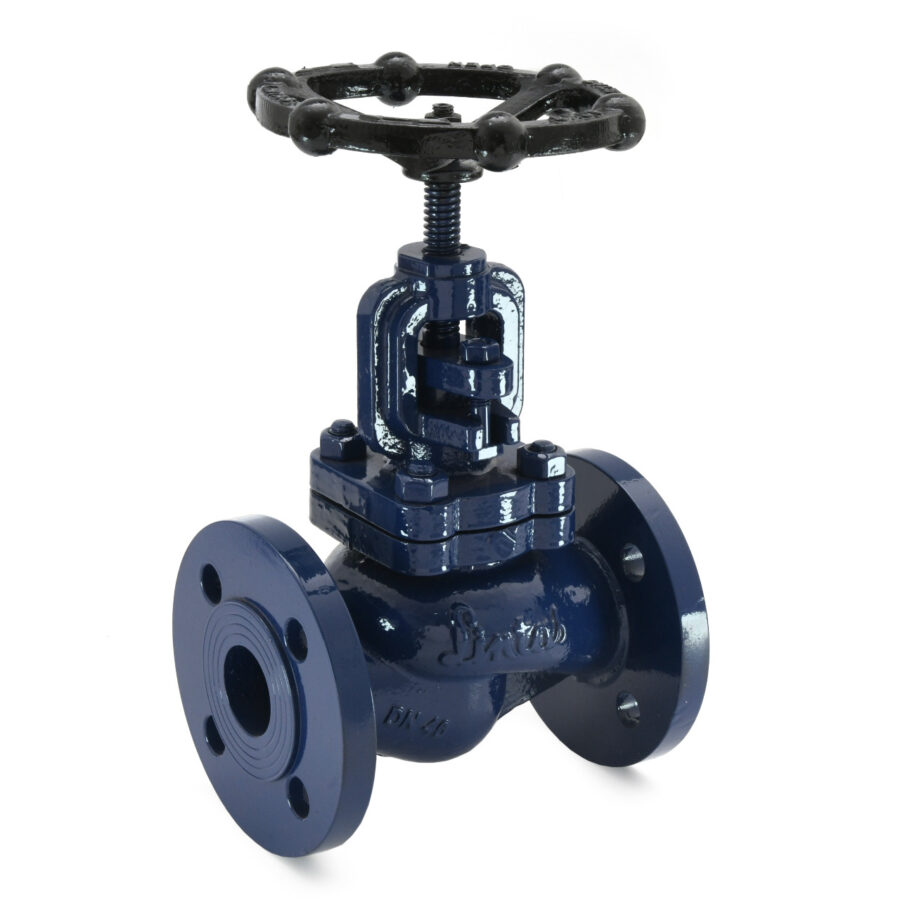

LI-GV-02-FE CAST IRON GLOBE STEAM STOP VALVE PN 16

Features

  • Flanged Ends to DIN 2533 PN 16RF.
  • Straight Pattern, Outside Screw, Yoke Type, Rising Stem.
  • Stainless Steel (S.S 410) working parts.
  • Fluidic body design and high-lift seat to reduce pressure drop and provide optimal flow.
  • Ductile-Iron cast Hand-Wheel, Ergonomically designed to provide smooth operation and effortless torque.

Test Pressure (Hydrostatic) :
Shell : 26 kg/cm²g (370 psig)
Working Pressure (Steam) : 13 kg/cm²g (185 psig)
Maximum Working Temperature: 220°C

IBR

Suitability

Water, Steam

Download PDF Start WhatsApp Chat Send Inquiry

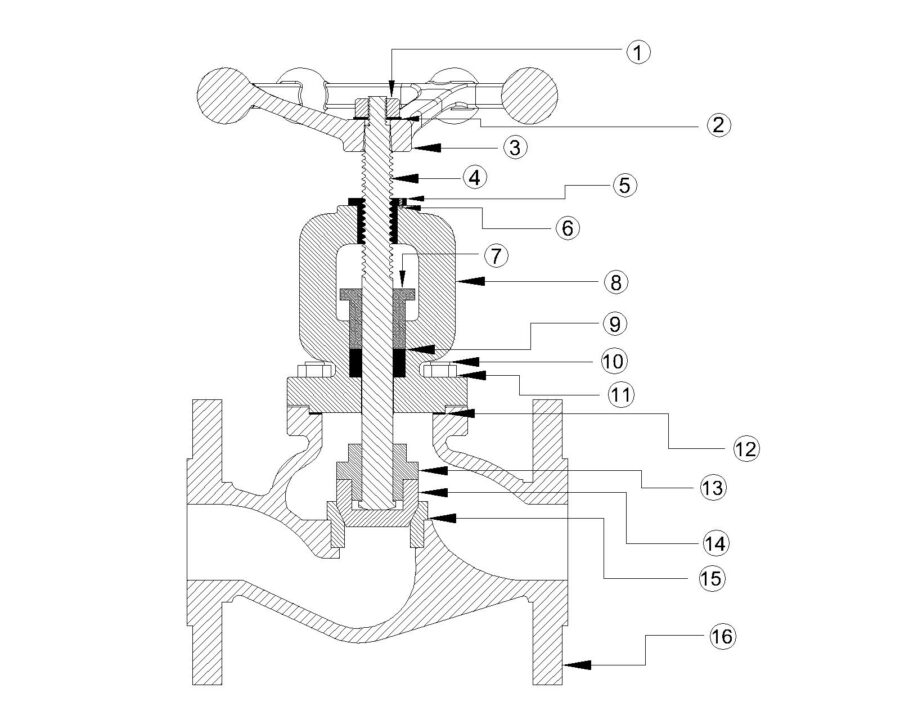

Materials of Construction

P.No. Name of Part Material of Construction Specification Quantity
1 Nut Mild Steel – – – 1
2 Washer Mild Steel – – – 1
3 Handwheel Ductile Iron – – – 1
4 Stem Stainless Steel ASTM A 276 Type 410 1
5 Yoke Bush Stainless Steel ASTM A 276 Type 410 1
6 Allen Key Locking Screw – – – – – – 1
7 Gland Flange Cast Iron IBR 86-93 Gr. A 1
8 Bonnet Cast Iron IBR 86-93 Gr. A 1
9 Gland Packing Braided Graphited Asbestos – – –  –
10 Studs Mild Steel – – – As Reqd.
11 Nuts Mild Steel – – – As Reqd.
12 Gasket C.A.F / Non-Asbestos – – – 1
13 Stem Nut Stainless Steel ASTM A 276 Type 410 1
14 Disc Stainless Steel ASTM A 276 Type 410 1
15 Body Seat Ring Stainless Steel ASTM A 276 Type 410 1
16 Body Cast Iron IBR 86-93 Gr. A 1
17 Nuts Mild Steel  – – – 2
18 Bolts Mild Steel   – – – 2
