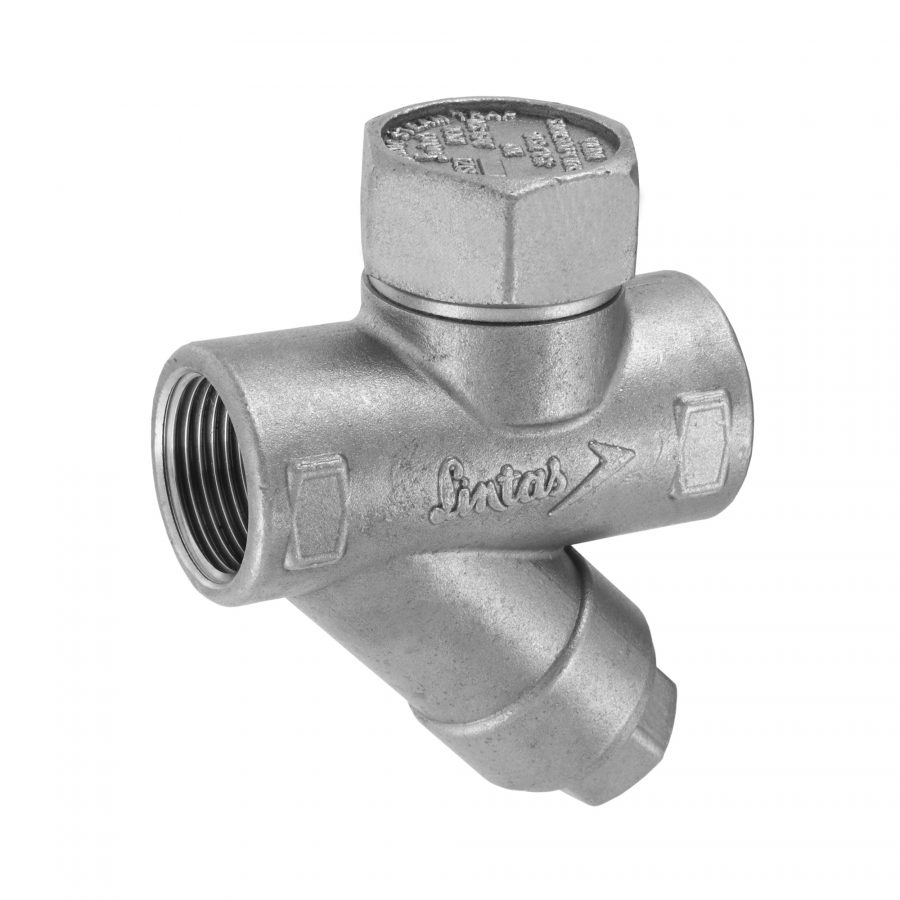

LI-ST-01 Stainless Steel Thermodynamic Steam Trap TD-3

Features

• Screwed Female Ends to BSP/BSPT.
• Superior Quality Investment Casting.
• All Stainless Steel construction: Better Mechanical Properties.
• Provided with integral Strainer: Avoid Clogging.
• Precisionally Machined disc.

Test Pressure:
• Maximum allowable pressure: 63 Bar.
• Maximum operating pressure: 42 Bar.
• Maximum allowable temperature: 400C.
• Maximum operating temperature: 255C.

Suitability

Steam

Download PDF Start WhatsApp Chat Send Inquiry

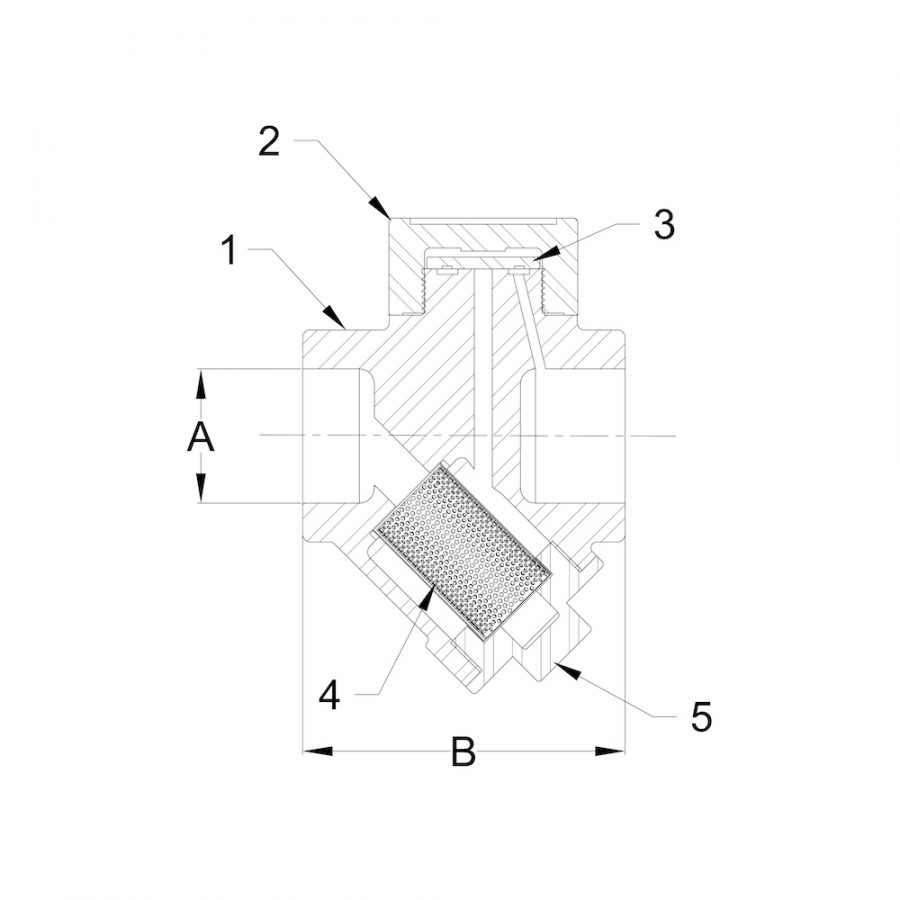

Materials of Construction

Part Name Specifications / Material Qty
Body SS:410 / 304 1
Cover SS:410 / 304 1
Disc SS:410 / 304 1
Screen SS:304 1
Plug SS:410 / 304 1
LI-ST-01 Stainless Steel Thermodynamic Steam Trap TD-3

Dimensions

Size (mm) End to End ±1.00 mm Size (Inches)
15 80.00 1/2″
20 80.00 3/4″
25 80.00 1″
