LI-CV-01 Stainless Steel Disc Check Valve

Features

  • Wafer Type design to take lesser space than Conventional Check Valve.
  • Superior Quality Investment Casting.
  • Full bore for good flow characteristics.
  • Tight shut-off lapped disc.
  • Easy maintenance & Renewable disc.
  • Horizontal & Vertical Installation
  • Permits flow in one direction and shuts automatically if the flow reverses.
  • Available in S.S 304(CF8) & S.S 316(CF8M) Grades.
  • Max. Operating Pressue: 40 Bar



Suitability

Water, Air, Gas, Oil, Steam

Download PDF Start WhatsApp Chat Send Inquiry

Materials of Construction

Part Name Specifications / Material Qty
Body SS:304 / 316 1
Disc SS:304 / 316 1
Spring SS:304 / 316 1
Lock SS:304 / 316 1
LI-CV-01 Stainless Steel Disc Check Valve

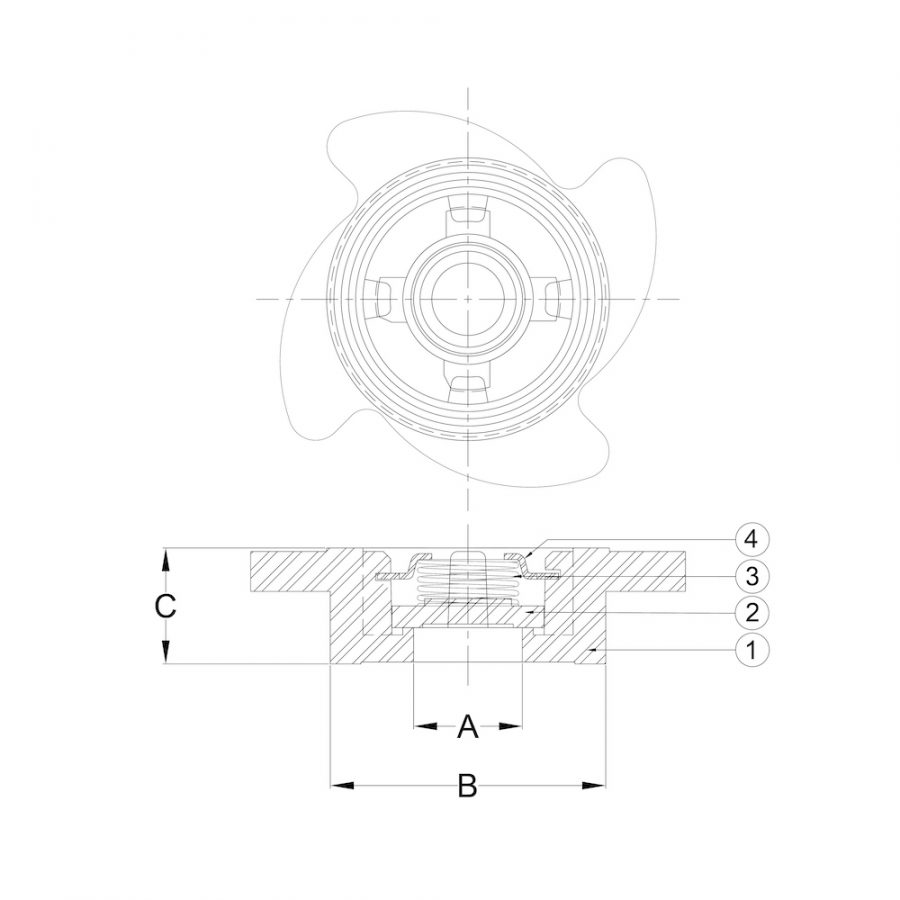

Dimensions

Size (mm) Bore (A) mm Diameter (B) ±1.00 mm Total Height (C) ±1.00 mm
15 15 38 17
20 20 46 21
25 25 54 22
32 32 64 27
40 40 72 33
50 50 89 41
65 65 109 47
80 80 128 51
100 100 148 60
